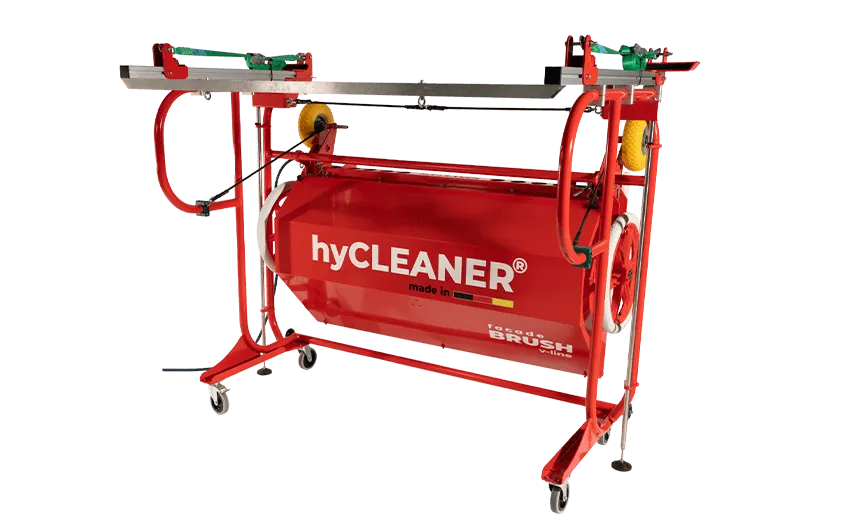

VERTICAL FACADE CLEANING WITH THE facadeBRUSH v-line
VERTICAL FACADE CLEANING MADE EASY – WITH THE facadeBRUSH v-line
The facadeBRUSH v-line is the perfect solution for professional facade cleaning. It cleans a wide variety of surfaces and materials gently, effectively, and quickly. Its high area performance also makes it particularly economical.
Fast, environmentally friendly, and safe
The 1.55 m mechanical brush can be configured with various mounting options. This allows it to be flexibly attached to gondola and building access systems, as well as aerial work platforms. The facade cleaning is carried out vertically – i.e. from top to bottom – exclusively with high-pressure water, without any additional power supply lines.
Streak-free and sustainable facade cleaning
All water-bearing components are made of rust-free materials, which means that osmosis water can be used without any problems. This allows facades to dry streak-free after cleaning and leaves no marks on the surfaces.
This makes every facade cleaning process particularly environmentally friendly, sustainable and gentle – for permanently clean and well-maintained facades.
THE FACTS
500 m²/h cleaning performance
When done manually under constant load, a maximum of 50 m²/h of facade can be cleaned. With the facadeBRUSH v-line, this can be done ten times faster.
Efficient cleaning for time & cost savings
Thanks to a cleaning width of 1,550 mm, facades can be cleaned economically, quickly and gently with just one worker, without any physical strain on the operator. In addition, the high cleaning quality ensures reduced cleaning intervals.
Flexible in use depending on requirements
Our facade cleaning machines can be used flexibly on various facades: whether glass, metal or mixed facades. The machine is used vertically, so that cleaning is carried out from top to bottom.
Low maintenance – for a valuable property
Our cleaning system is not only low-maintenance and service-friendly. Cleaning and cleanliness also increase the value of properties. This allows permanent damage to be proactively prevented.
Different mounting options
The type of mounting can be configured flexibly. This means that the machine can be attached to different gondola and building access systems. When used with an aerial work platform, the brush can be attached to the work basket or directly to the platform. The cleaning machine is already approved for a large number of aerial work platforms.
Chemical-free for the best cleaning results
TECHNICAL DETAILS
Brush width
+/- 1,550 mm
Brush diameter
+/- 550 mm
Motion compensation
max. 1,000 mm
Price
From €34,000
excluding 19% VAT, plus shipping
Width
+/- 1195mm or 1395 mm
Length
+/- 1378.5mm
Height
+/- 1378.5mm
Further Information
Impeller ∅ large
+/- 500 mm
Impeller ∅ small
+/- 260 mm
Total weight
min. 120 kg
Traffic load on the surface to be
cleaned
min. 20 kp/m2
max. 82 kp/m2
min. 197 N/m2
max. 807 N/m2
Water pressure
min. 120 bar
max. 160 bar
Water quantity
min. 9 l / min
max. 12 l / min
Sinking speed
max. 24 m / min
Area performance*
*depending on the degree of soiling
max. 9 m2 / min.
Climbing ability
depending on the surface condition
excl. 19% VAT, plus shipping
Width of the brushes
+/- 1195mm or 1395 mm
Brush width in offset
+/- 1378.5mm
Brush diameter
+/- 1378.5mm
Brush rotation
+/- 1378.5mm
Driving speed
+/- 1378.5mm
Ion battery 36V
+/- 1378.5mm
Total weight
depending on equipment
+/- 1378.5mm
Price: From €22,300
excl. 19% VAT, plus shipping
For an overview of our products and all specifications, please download our current brochure.
ADD-ONS FOR THE facadeBRUSH v-line

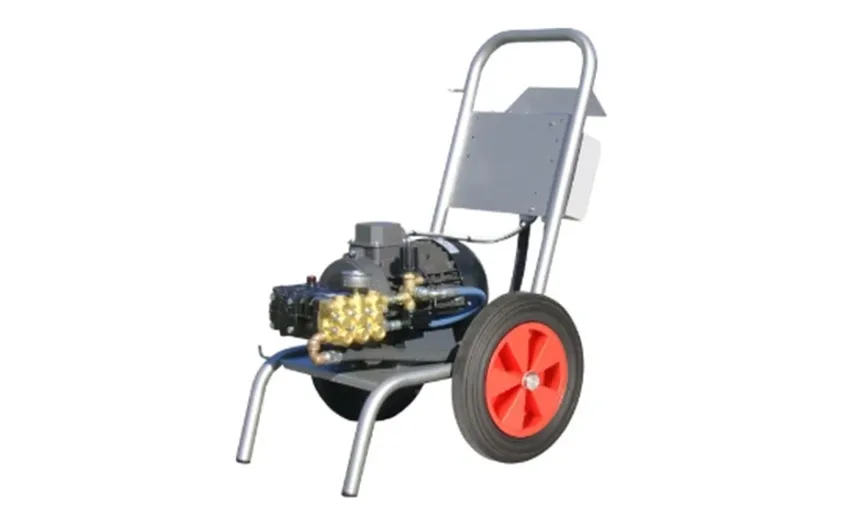

Powerful high-pressure cleaner, ideally suited for use with the DIRT FORCE for maximum cleaning performance and efficiency.

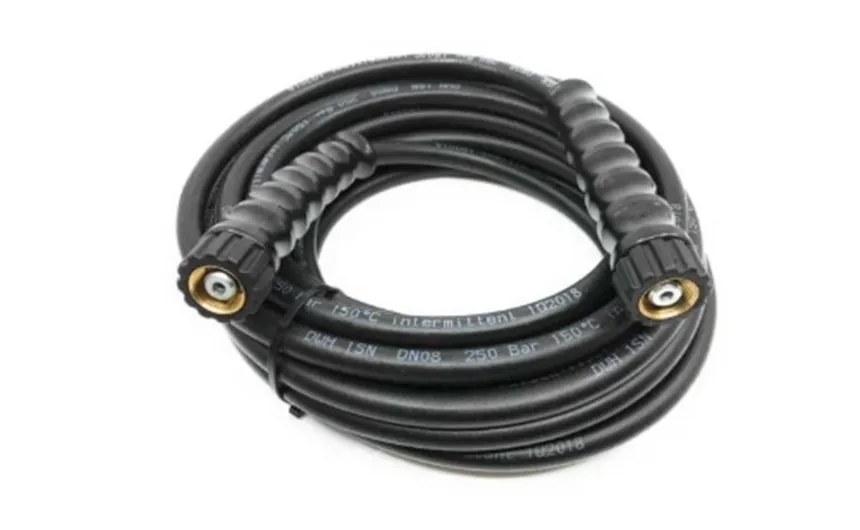

Extra hose length for use with the DIRT FORCE and the high-pressure cleaner.
Reverse osmosis with 750 l/h of pure water – ideal for use with the pro.
Facade cleaning of a high-bay warehouse in Crailsheim
Here, the facade of a high-bay warehouse in Crailsheim was thoroughly cleaned with the hyCLEANER® facadeBRUSH v-line – visibly, efficiently and with pure water.
Information &
Downloads
All information at a glance! With our videos, pictures, brochures and technical documents such as the operating instructions, you are well informed about our cleaning systems.

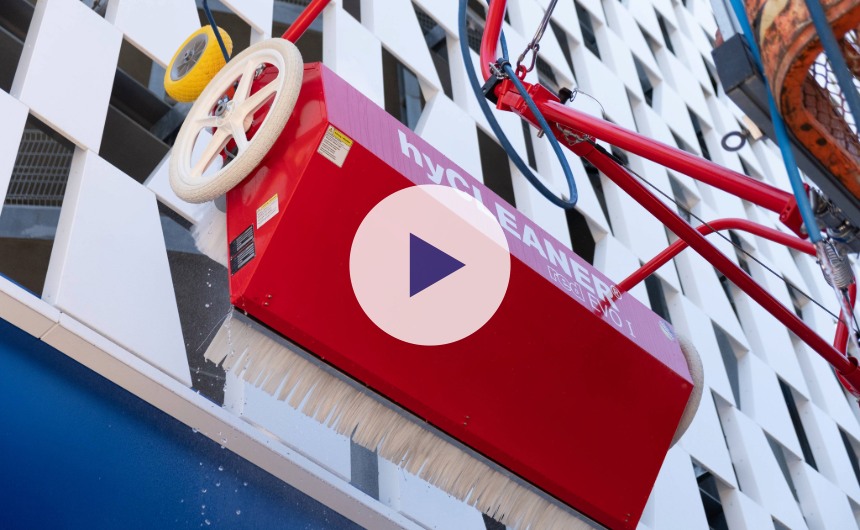

Our v-line in action
Whether algae or other environmental dirt: our facade brush shows in videos how efficiently and gently even stubborn dirt can be removed quickly and safely.
OUR CUSTOMERS AT hyCLEANER®
I have been working with the facadeBRUSH v-line since 2015. After a demo, I kept it straight away. It has been running reliably ever since. I particularly appreciate the simple handling and the low entry barrier, as I can rent the necessary aerial work platforms. The same applies to the solar robots – the concept is right, the technology is reliable. I can recommend hyCLEANER without reservation.
Benjamin Volk
Managing Director at Volk & Volk
“With the hyCLEANER robot, we can carry out solar cleaning faster and more efficiently. The robot is well constructed and the customer service from hyCLEANER is excellent!”
Will Ballard
Solar Cleaning South West Ltd
During my research, I came across three companies and chose the best one: hyCLEANER. The team was incredibly helpful. Almost anything is possible at hyCLEANER – I have never experienced such flexibility with other providers. I am thrilled with the people, the organization and the product – really great!
Bas Selman
Managing Director at Quality Flex
I was particularly impressed by the quality, functionality and ease of use of the robots. I mainly use the two hose reels and the autodrive function, which are ideal for large areas such as stables and commercial facilities – my main area of application. The customer service is also top-notch!
Lukas Lenzmann
Owner, L&L PV-Reinigung
VIDEOS ABOUT THE facadeBRUSH v-line
Refresh your knowledge: Functions, techniques, and tips for safe and efficient use available in video format at any time.
Powerful, efficient, and safe – for the thorough cleaning of large glass and metal facades, even at heights of up to 37 meters.

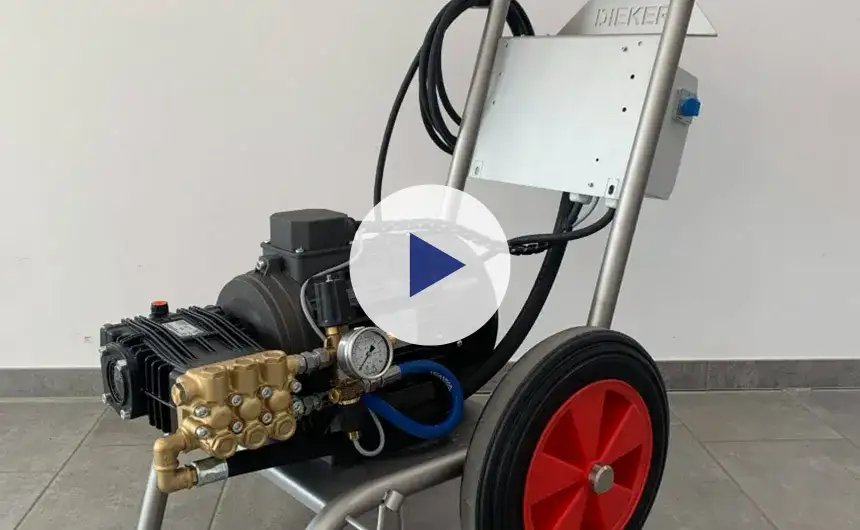

Explained in 1 minute: What is important when choosing the right pressure washer for lichen removal.

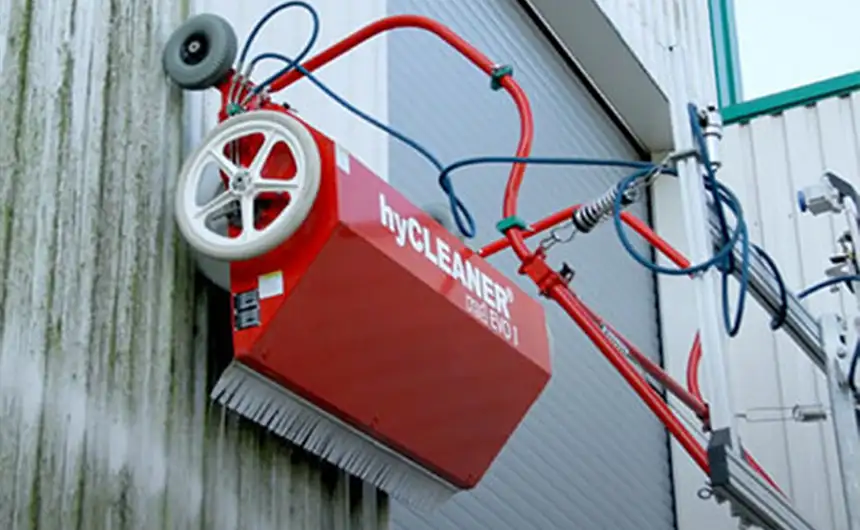

A mechanical facade cleaning that offers maximum safety for your personnel and a perfect cleaning result.
The facadeBRUSH v-line is quick and easy to mount on the aerial work platform. Once the machine is ready for use, it continues at a rapid pace.
Easily, quickly, and efficiently clean dirty facades with the facadeBRUSH v-line.

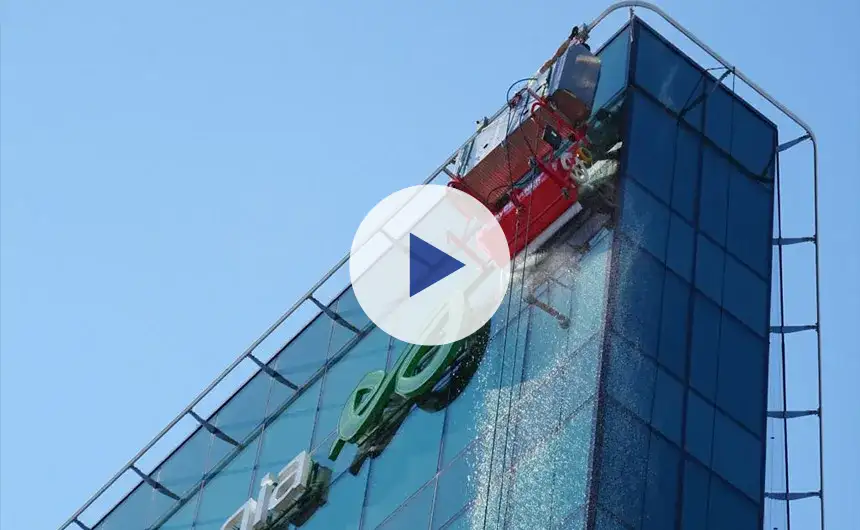

The facadeBRUSH v-line has 3 possible mounting options. Among other things, it can be mounted on gondola and access systems.
SUITABLE TECHNICAL ARTICLES
Clean energy thanks to innovative robotic engineering: hyCLEANER from Gronau develops state-of-the-art cleaning systems for glass facades and PV systems worldwide. In the podcast "Made in Westmünsterland", the team demonstrates how technology, efficiency, and sustainability interact.
Large industrial surfaces place high demands on cleaning processes. In this article, the hyCLEANER team demonstrates how smart methods, optimized resource utilization, and well-planned procedures make cleaning economical and sustainable.

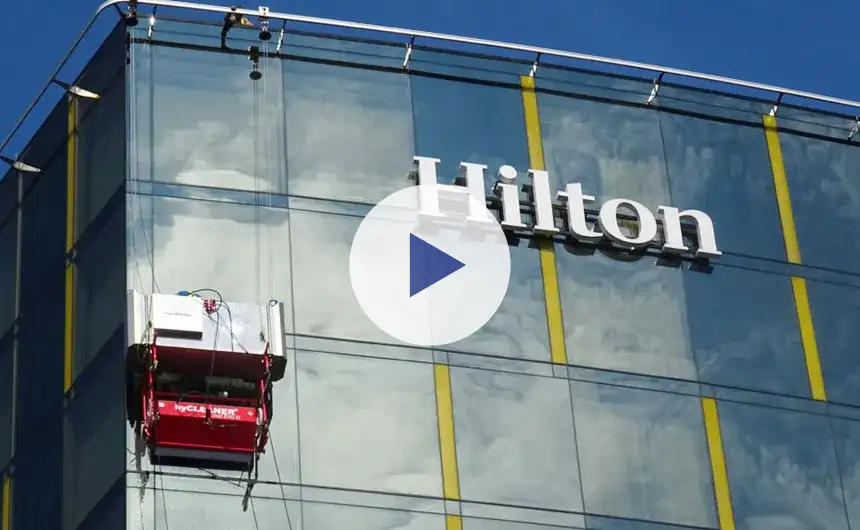

Historical flair meets modern architecture: In Estonia's capital Tallinn, hyCLEANER ensures the gentle cleaning of the glass facades of the Hilton complex – efficient, sustainable and perfectly adapted to the sophisticated building structure.
In Tallinn, a semi-automatic system was used for the first time on gondola and access systems for facade and glass cleaning. The "Made in Germany" technology delivered a thorough and gentle cleaning - a convincing proof of efficiency in real operation.

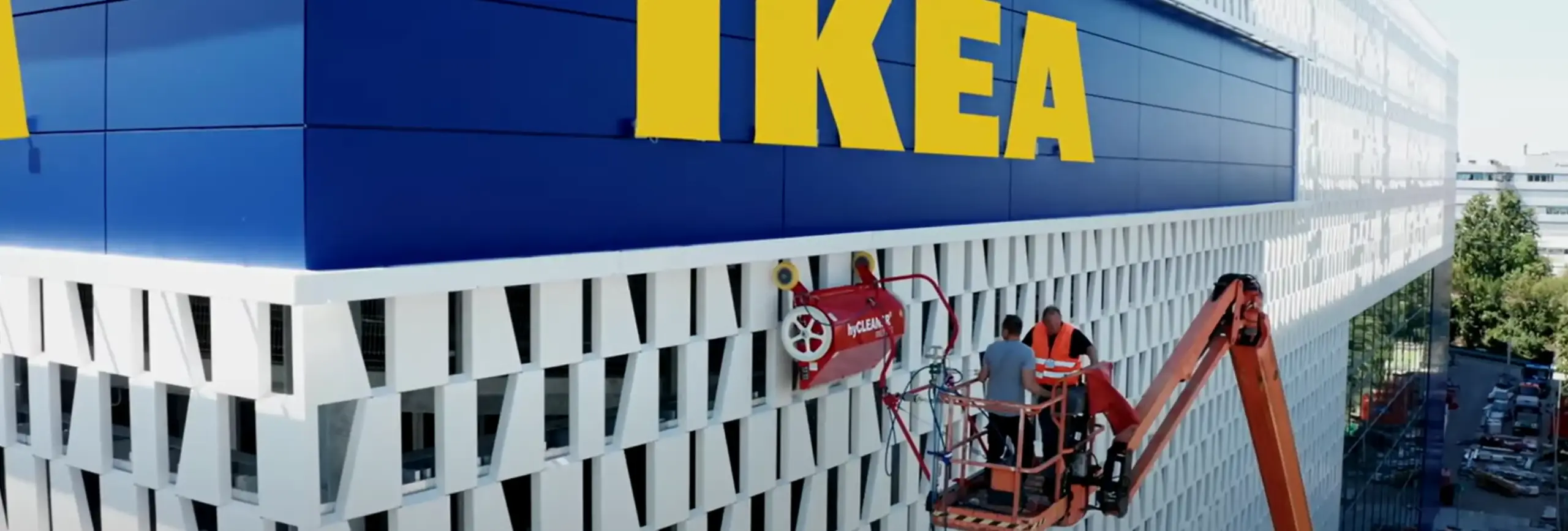

IKEA in Karlsruhe also relies on modern, mechanical facade cleaning and trusts the powerful facadeBRUSH v-line. Over 20,000 m² of glass and metal facade were cleaned efficiently, safely, and evenly – for a permanently well-maintained appearance.
FAQ ABOUT THE facadeBRUSH v-line
How many m²/cleaning performance does the facadeBRUSH v-line achieve per hour?
This depends on the brush size used – in this case 1,500 mm – and the lowering speed of the movement system used, such as an aerial work platform or gondola. On average, the facadeBRUSH v-line achieves 500 m² per hour.
How much does the facadeBRUSH v-line cost?
The facadeBRUSH v-line is available with various equipment options and starts at EUR 22,300 if it is to be mounted on the basket of an aerial work platform. Alternatively, it can be mounted directly on the frame of the aerial work platform or on a gondola system. These variants are priced at EUR 25,500.
How is the facadeBRUSH v-line powered?
The cleaning machine is operated via water pressure, which is supplied via a high-pressure cleaner. This means that a water connection and electricity for the high-pressure cleaner are required near the aerial work platform.
How much Power Must the High-Pressure Cleaner Used Have?
The facadeBRUSH v-line requires at least 12 l/min and a pressure of approx. 120 to max. 160 bar. Accordingly, the high-pressure cleaner should be able to achieve at least 160 bar due to the pressure loss when working at height.
